TS-DQ-100 Double Arm Electrical Medical Endoscopic Pendant from Factory
Introduction
TS-DQ-100 refers to double arm electrical endoscopic pendant. It is an essential instrument in Laparoscopic surgery. It is driven by electricity, very convenient and faster. Not only can transmit electricity and gas, but also place some medical equipment. 100% customize in size, medical gas outlets, and electrical sockets. Modular design, it can be upgraded in the future.
Applications
1. Operating Room
2. Emergency Room
3. ICU
4. Recovery Room
Feature

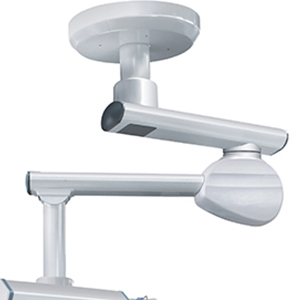

1. Electrical Driven System
With electrical driven system and articulated arm, it will be convenient for medical stuff, saving time and physical effort.
Electrical Medical Pendant
2. Double Rotating Room
Double swivel arms, the length of the arm can be customized and can be rotated 350 degrees, providing a lot of space for movement.
3. Gas and Electricity Separation Design
According to strict international standards, the gas zone and the electric zone are designed separately to ensure that the gas supply lines and gas supply pipes will not be accidentally twisted or dropped due to the rotation of the pendant.

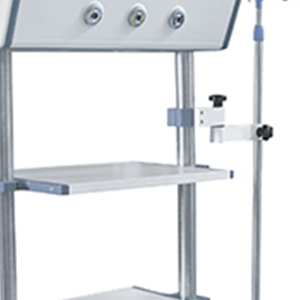

4. Instrument Tray
The instrument tray is made of high-strength aluminum alloy profiles with good bearing strength. There are stainless steel rails on both sides for installing other equipment. The height of the tray can be adjusted as needed. The tray has protective rounded corners.
Ceiling Mounted Medical Pendant

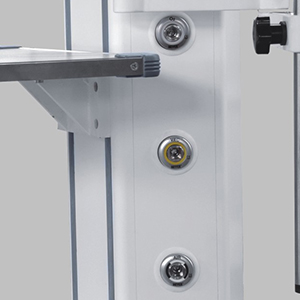

5. Gas Outlets
The color and shape of the gas interface are different to prevent incorrect connection. Secondary sealing, three states (open, closed and unplugged), used more than 20,000 times.
China Hospital Pendant
Parameters:
Length of the arm:
600+800mm,600+1000mm,600+1200mm,800+1200mm,1000+1200mm
Effective working radius:
Rotation of arm: 0-350°
Rotation of pendant: 0-350°
|
Description |
Model |
Configuration |
Quantity |
|
Double Arm Electrical Medical Endoscopic Pendant |
TS-DQ-100 |
Instrument Tray |
2 |
|
Drawer |
1 |
||
|
Oxygen Gas Outlet |
2 |
||
|
VAC Gas Outlet |
2 |
||
|
Carbon Dioxide Gas Outlet |
1 |
||
|
Electrical Sockets |
6 |
||
|
Equipotential Sockets |
2 |
||
|
RJ45 Sockets |
1 |
||
|
Stainless Steel Basket |
1 |
||
|
IV Pole |
1 |
||
|
Endoscope Bracket |
1 |
-
