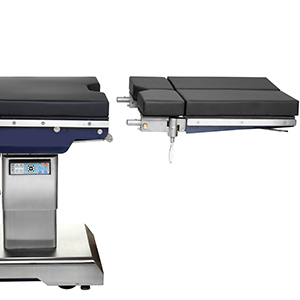

TDY-Y-2 Hospital Electro-Hydraulic Operating Table
Introduction
High light transmission fiber material plus 340mm horizontal sliding ensures no blind spot during X-ray scanning.
This electro-hydraulic operating table is equipped with dual control system to ensure trouble-free operation.
It can be equipped with a multifunctional head frame and orthopedic traction frame.
Feature
1.Longer and Wider Table Surface
The length of the electro-hydraulic operating table surface can reach 2180mm, and the width can reach 550mm, which is suitable for the needs of some special groups and can also make the patient more comfortable.
2.Double Control System
The electro-hydraulic operating table is equipped with a main control/auxiliary controller dual system to ensure trouble-free operation
Double Control System
Flex &Re-flex & One button Reset
Flex &Re-flex & One button Reset
3.Flex &Re-flex & One button Reset
One-button reset function, can restore the original horizontal position, one-key flexion and reverse flexion
4.Optional Electric Adjusted Leg Plate
The plug-in modular design of the leg plate can adjust the leg plate electrically, which greatly saves the time of adjusting the position.
5.Built-in Rechargeable Battery
TDY-Y-2 electric-hydraulic operating table is equipped with a high-performance rechargeable battery, which can meet the needs of 50 operations. At the same time, it has an AC power supply to provide electrical energy to ensure maximum safety.
Parameters
| Model Item | TDY-Y-2 Electro-Hydraulic Operating Table |
| Length and Width | 2160mm*550mm |
| Elevation( Up and Down) | 1100mm/ 690mm |
| Head Plate (Up and Down) | 18° 45° |
| Back Plate (Up and Down) | 85°/ 40° |
| Leg Plate (Up /Down/ Outward) | 15°/ 90°/ 90° |
| Trendelenburg/Reverse Trendelenburg | 28°/ 28° |
| Lateral Tilt (Left and Right) | 18°/ 18° |
| Kidney Bridge Elevation | 100mm |
| Horizontal Sliding | 340mm |
| Zero position | One button, standard |
| Flex/ Reflex | Combination Operation |
| X-ray Board | Optional |
| Control Panel | Standard |
| Emergency stop button | Standard |
| Electro-motor system | Chaoger from Taiwan |
| Voltage | 220V/110V |
| Frequency | 50Hz / 60Hz |
| Power Compacity | 1.0 KW |
| Battery | Yes |
| Mattress | Memory Mattress |
| Main Material | 304 Stainless Steel |
| Maximum Load Capacity | 200 KG |
| Warranty | 1 Year |
Accessories
| No. | Name | Quantities |
| 1 | Anesthesia Screen | 1 piece |
| 2 | Body Support | 1 pair |
| 3 | Arm Support | 1 pair |
| 4 | Shoulder Support | 1 pair |
| 5 | Leg Support | 1 pair |
| 6 | Kidney Bridge Handle | 1 piece |
| 7 | Mattress | 1 Set |
| 8 | Fixing Clamp | 8 pieces |
| 9 | Long Fixing Clamp | 1 pair |
| 10 | Remote Control | 1 piece |
| 11 | Power Line | 1 piece |
| 12 | Hydraulic Oil | 1 oil can |
