TDY-G-1 Electric-Hydraulic OR Table With Radiolucent Stainless Steel

Short Description:

TDY-G-1 electro-hydraulic integrated operating table

High light transmission fiber material is suitable for X-ray use.




Product Detail

Product Tags

Introduction

All cover is made of 304 stainless steel, easy to clean and disinfect.

High light transmission fiber material is suitable for X-ray use.

The widened mattress design allows patients to lie on the operating table more comfortably.

TDY-G-1 electro-hydraulic operating table adopts advanced hydraulic control system, reliable electromagnetic valves and oil pumps from Taiwan, ensures quiet and stable performance.

Feature

1.Ultra-low Position

2.Double joint head plate

3.Built-in Kidney Bridge

4.Built-in Rechargeable Battery

5.Mechanical Brakes

Parameters

Model   Item TDY-G-1 Electric-Hydraulic OR Table
Length and Width 2080mm * 550mm
Elevation( Up and Down) 820mm / 520mm
Head Plate (Up and Down) 45°/ 90°
Back Plate (Up and Down) 80°/ 20°
Leg Plate (Up /Down/ Outward) 15°/ 90°/ 90°
Trendelenburg/Reverse Trendelenburg 20°/ 20°
Lateral Tilt (Left and Right) 15°/ 15°
Kidney Bridge Elevation 110mm
Electro-motor system Chaoger from Taiwan
Voltage 220V/110V
Frequency 50Hz / 60Hz
Power Compacity 1.0 KW
Battery Yes
Mattress Memory Mattress
Main Material 304 Stainless Steel
Maximum Load Capacity 200 KG
Warranty 1 Year

Standard Accessories

No. Name Quantities
1 Anesthesia Screen 1 piece
2 Body Support 1 pair
3 Arm Support 1 pair
4 Shoulder Support 1 pair
5 Leg Support 1 pair
6 Foot Support 1 pair
7 Kidney Bridge Handle 1 piece
8 Long Fixing Clamp 1 pair
9 Fixing Clamp 8 pieces
10 Hand Remote 1 piece
11 Power Line 1 piece
12 Pedal 1 Pair
Medical-Operating-Table

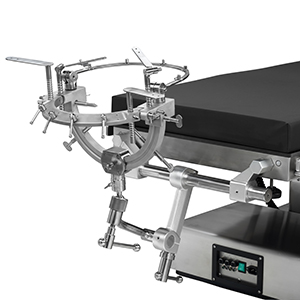

Ultra-low Position

Tilt-Mobile-Operating-Table

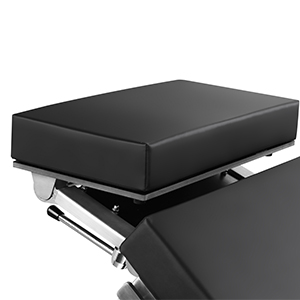

Double joint head plate

Multi-Purpose-Operation-Table

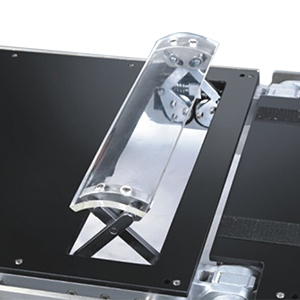

Built-in Kidney Bridge

Multi-Function-Operating-Table

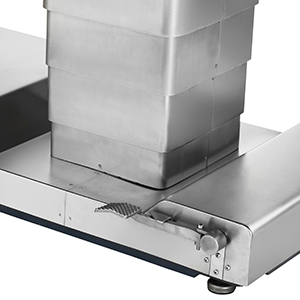

Mechanical Brakes
