PROLED H6 Advance Ceiling Type Shadowless Surgical LED Lamp for Ot Room

Short Description:

PROLED H6 LED operation light is avaliable in three ways, ceiling mounted, mobile and wall mounted.

Product Detail

Product Tags

Introduction

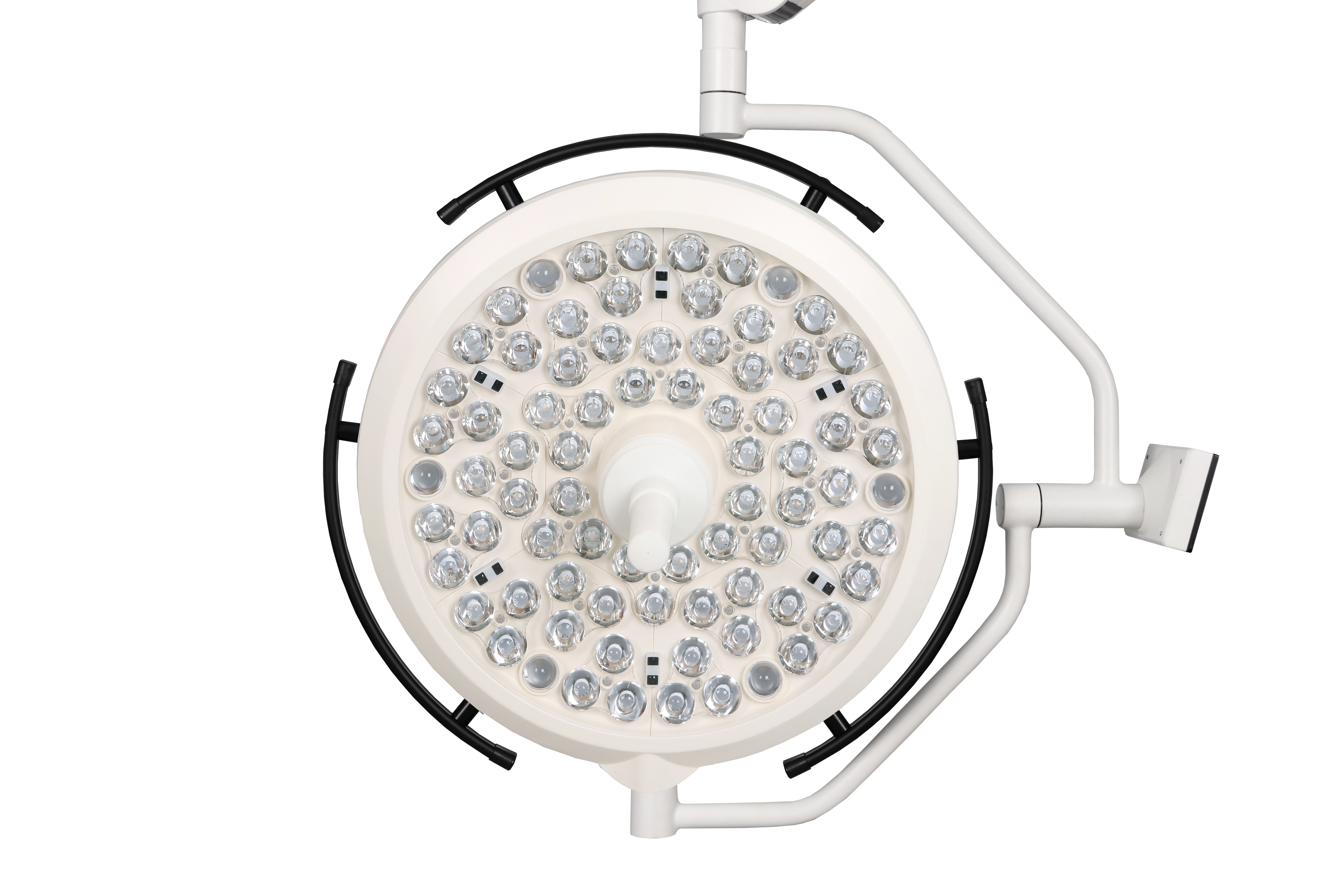

PROLED H6 refers to double domes ceiling mounted medical operating light.
Second generation LED light, which has been upgraded on the basis of the original product. Aluminum alloy shell, upgraded internal structure, better heat dissipation effect. Trible lens modules, three colors of yellow , white and green, high-quality OSRAM bulbs. Excellent color rendering index, CRI higher than 90, illuminance can reach 160,000 Lux.

Apply to

■ abdominal/ general surgery
■ gynaecology
■ heart/ vascular/ thoracic surgery
■ neurosurgery
■ orthopaedics
■ traumatology / emergency OR
■ urology / TURP
■ ent/ Ophthalmology
■ endoscopy Angiography

Feature

1. New design of exterior and internal structure

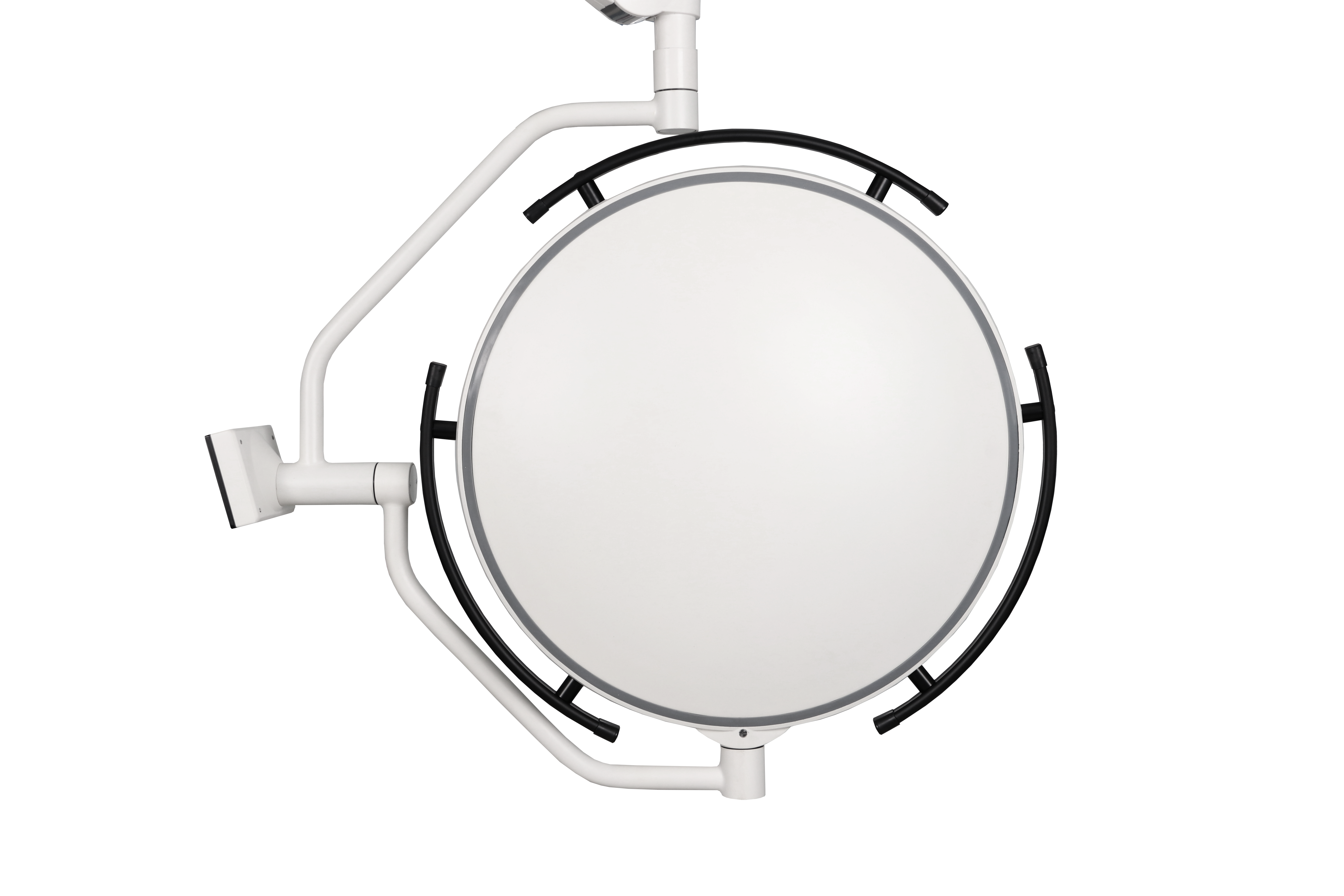

Full-enclosed dic dome, with flat streamlined design, which is compatibal with laminar flow clean and disinfection requirements for modern operation rooms

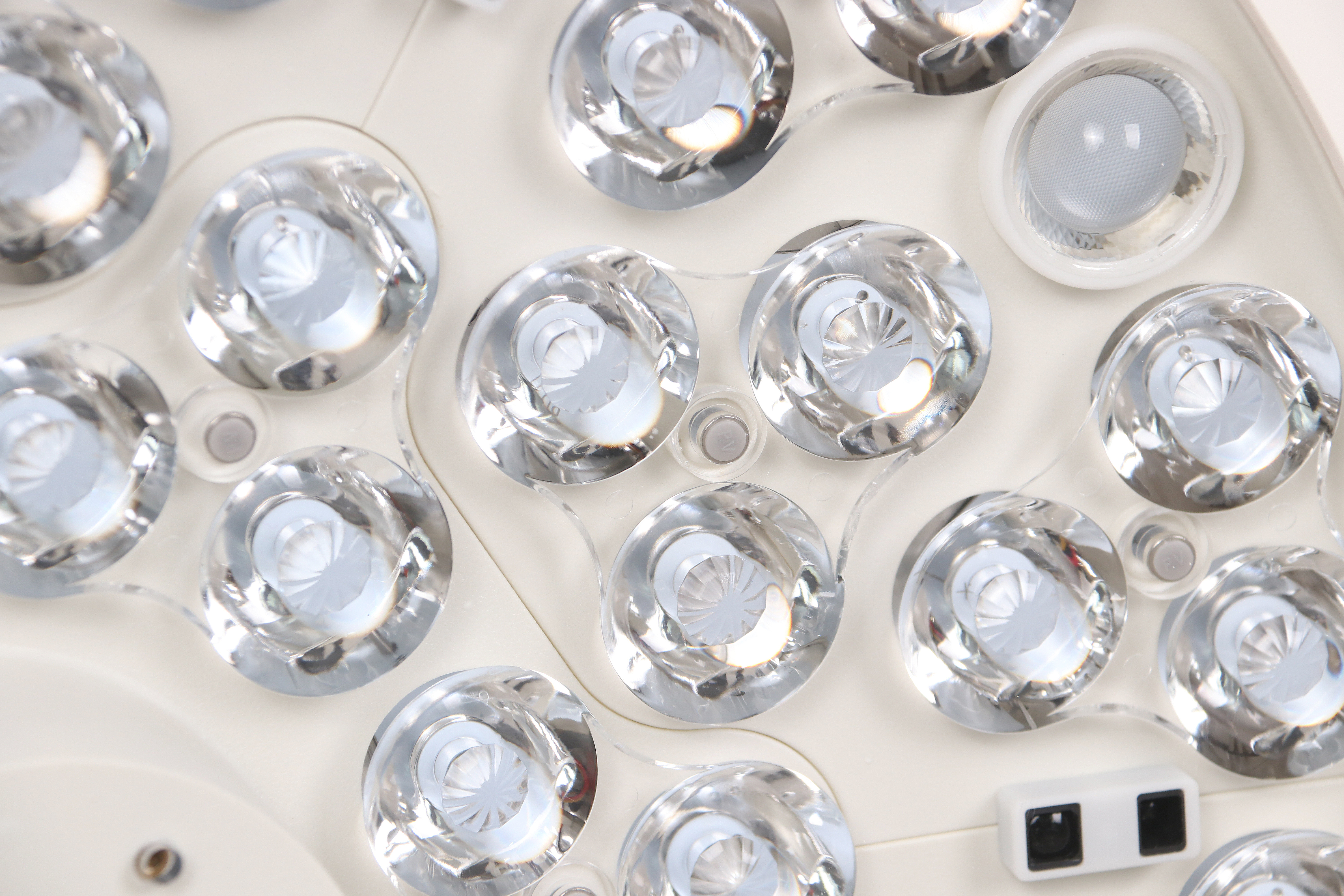

2. Independent triple-lens optical design

CAD-designed optical lens set for optimal shadowlessness and depth of light, with up to 98% deep cavity illumination

3. Dual lamp mutual control function

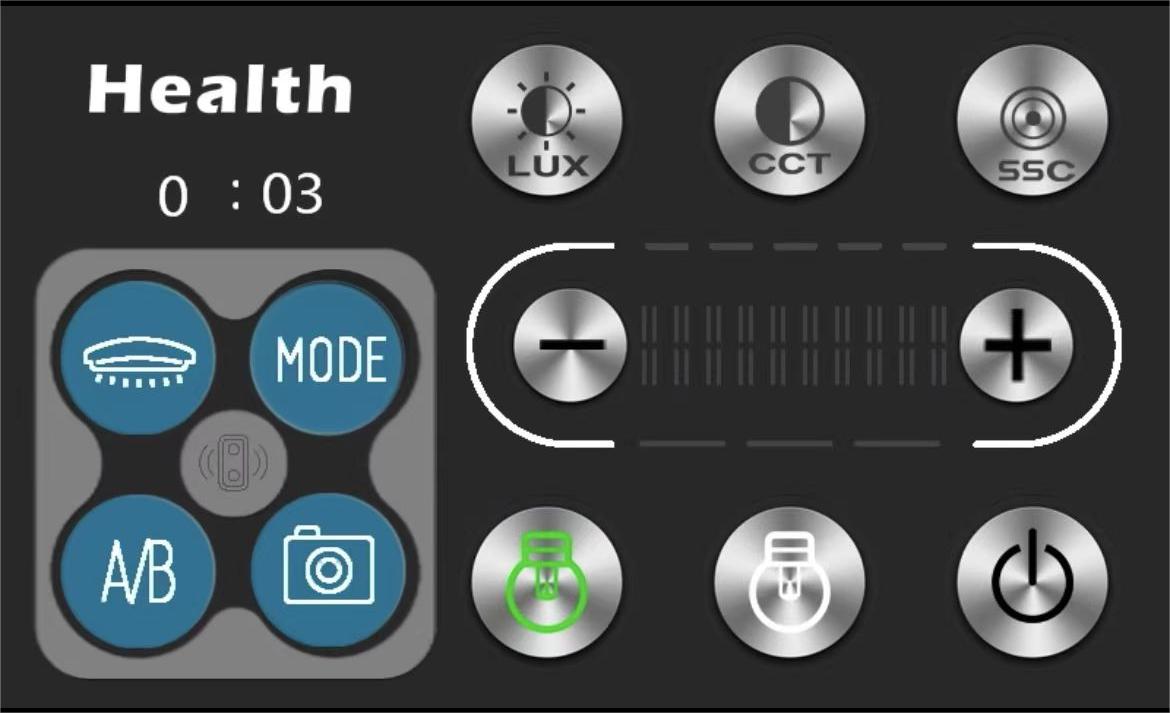

New touchscreen display with user-friendly interface.

One light controller can control another one or control both of them, to provide more stable and convenient operation for health care workers.

4. Intelligent shadow compensation technology

When the head is close to the light source, the other uncovered parts will be automatically compensate for the brightness , so as to ensure the ideal illumination brightness of the surgical site

5. Reassuring Circuit System

Parallel circuit, each group is independent of each other, if one group is damaged, the others can continue to work, so the impact on the operation is small.

Over-voltage protection, when the voltage and current exceed the limit value, the system will automatically cut off the power to ensure the safety of the system circuit and high-brightness LED lights.

6. Multiple Accessories Choice

For this medical operating light, it is available with wall control, remote control and battery back up system.

Parameters:

Description	PROLED H6 Medical Operating Light
Illumination Intensity (lux)	40,000-160,000
Color Temperature (K)	3000-5000K
Color Rendering Index(Ra)	≥98
Special Color Rendering Index(Ra)	≥98
Illumination Depth (mm)	>1500
Diameter of Light Spot (mm)	120-350
LED Head Power(VA)	180
LED Service Life(h)	>60,000
