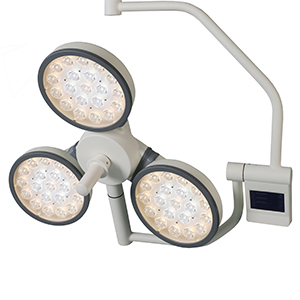

LEDD730 Ceiling Mounted LED Single Surgery Light with Aluminum-alloy Arm

Short Description:

LED730 LED surgery light is available in three ways, ceiling mounted, mobile and wall mounted.

LEDD730 refers to single ceiling LED surgery light.

Send email to us

Product Detail

Product Tags

Introduction

LED730 LED surgery light is available in three ways, ceiling mounted, mobile and wall mounted.
LEDD730 refers to single ceiling LED surgery light.
For operating room with purifying box, the petal type can avoid obstructing air flows and reduces considerably the turbulence areas in the laminar air flow. Three petals, sixty OSRAM bulbs, provide the max illuminance of 140,000lux and max color temperature of 5000K and max CRI of 95. All the parameters is adjustable in ten levels on LCD touch screen control panel. The handle is made of new materials, resistant to high temperature and high pressure. Provide three spring arms, cheap, cost-effective, high-end luxury.

Apply to

private and public hospitals, Laboratories, clinics, etc.

Feature

1. Compatible with Laminar Flow Purification

The petal LED surgery light can avoid obstructing air flows and reduces considerably the turbulence areas in the laminar air flow.
The lamp holder is fully enclosed design. Detachable handle is resistant to high temperature and high pressure, which strictly meets the daily disinfection requirements.

2. User-friendly LCD Touchscreen Control Panel

The color temperature, lighting intensity and color rendering index of the LED surgery light can be changed synchronously through the LCD control panel.

3. Cold Light

A new type of LED surgery light bulbs have no emission of infrared rays, which eliminates the heat under the surgery light and prevent the temperature increase of the surgeon head and the wound area.

4. Universal suspension system

It is made of new alloy materials, has a light structure, is easy to manipulate, has accurate positioning, and can provide the largest adjustment range.

5. Reassuring Circuit System

Parallel circuit, each group is independent of each other, if one group is damaged, the others can continue to work, so the impact on the operation is small.

Over-voltage protection, when the voltage and current exceed the limit value, the system will automatically cut off the power to ensure the safety of the system circuit and high-brightness LED lights.

6. Fast Installation

All joints only need to be connected to the plug-in unit, except for the spring arm that needs to adjust the resistance, and no extra debugging is required.

7. Upgrade Choice

Remote Control, wall control, battery back-up system is available.

Parameters:

Description	LEDD730 LED Surgery Light
Illumination Intensity (lux)	60,000-140,000
Color Temperature (K)	3500-5000K
Color Rendering Index(Ra)	85-95
Heat to Light Ratio (mW/m²·lux)	<3.6
Illumination Depth (mm)	>1400
Diameter of Light Spot (mm)	120-300
LED Quantities(pc)	60
LED Service Life(h)	>50,000
