LEDD620620 Ceiling LED Dual Dome Hospital OR Light with Wall Control

Short Description:

LEDD620/620 refers to double domes ceiling mounted medical operating light.

7 lamp modules, a total of 78 bulbs, two colors of yellow and white, high-quality OSRAM bulbs, color temperature 3000-5000K adjustable, CRI higher than 98, illuminance can reach 160,000 Lux. The operation panel is LCD touch screen, illuminance, color temperature , CRI refers to linkage changes.

Send email to us

Product Detail

Product Tags

Introduction

LEDD620/620 refers to double domes ceiling mounted medical operating light.
New product, which has been upgraded on the basis of the original product. Aluminum alloy shell, upgraded internal structure, better heat dissipation effect. 7 lamp modules, a total of 78 bulbs, two colors of yellow and white, high-quality OSRAM bulbs, color temperature 3000-5000K adjustable, CRI higher than 98, illuminance can reach 160,000 Lux. The operation panel is LCD touch screen, illuminance, color temperature , CRI refers to linkage changes. The suspension arms can be moved flexibly and positioned accurately.

Apply to

■ abdominal/ general surgery
■ gynaecology
■ heart/ vascular/ thoracic surgery
■ neurosurgery
■ orthopaedics
■ traumatology / emergency OR
■ urology / TURP
■ ent/ Ophthalmology
■ endoscopy Angiography

Feature

1. Light-Weight Suspension Arm

Suspension arm with light-weight structure and flexible design is easy for angling and positioning.

2. Shadow free performance

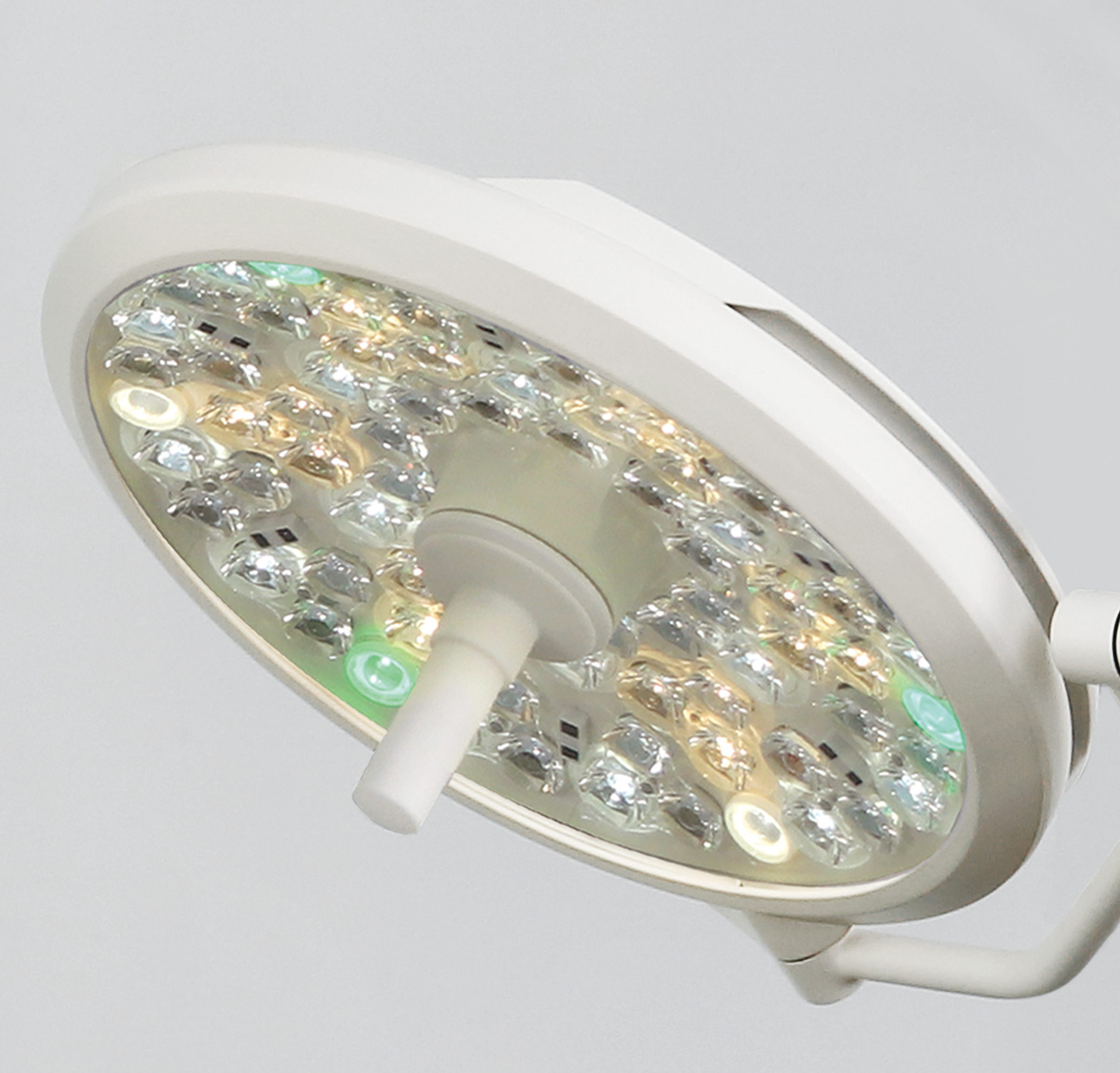

The arc medical operating light holder, multi-point light source design, 360-degree uniform illumination on the observation object, no ghosting. Even if part of it is blocked, the supplement of other multiple uniform beams will not affect the operation.

3. High Display Osram Bulbs

The high display bulb increases the sharp comparison between the blood and other tissues and organs of the human body, making the doctor's vision clearer.

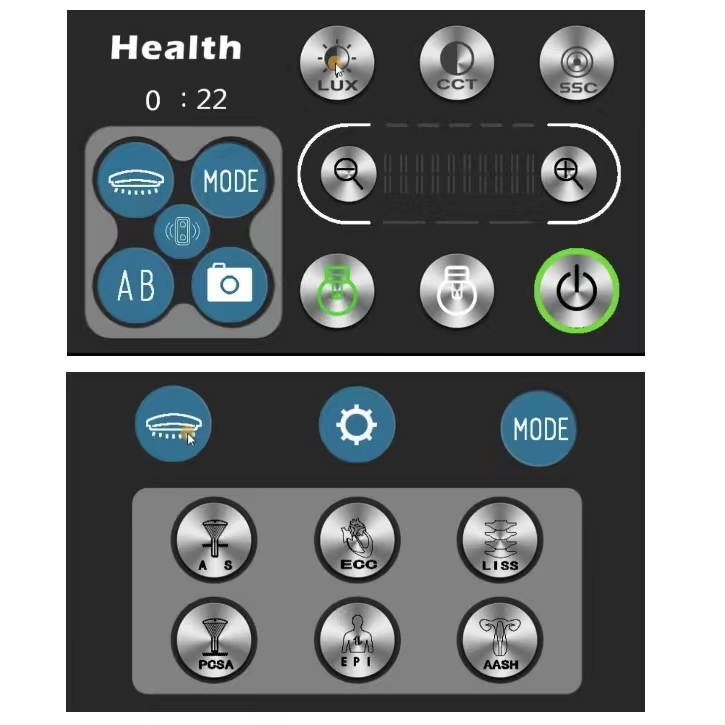

4. LED LCD Touch Control Screen

Lighting compensation function
Power on timing display
Full Brightness lighting mode
Continuously adjustable illumination
Adjustable color temperature
Dual lamp mutual control
Built-in camers function adjustment
Memory function
Parameter customization function
Intelligent fault code feedback
Endoscopy mode

5. Reassuring Circuit System

Parallel circuit, each group is independent of each other, if one group is damaged, the others can continue to work, so the impact on the operation is small.

Over-voltage protection, when the voltage and current exceed the limit value, the system will automatically cut off the power to ensure the safety of the system circuit and high-brightness LED lights.

6. Multiple Accessories Choice

For this medical operating light, it is available with wall control, remote control and battery back up system.

Parameters:

Description	LEDD620620 Medical Operating Light
Illumination Intensity (lux)	40,000-160,000
Color Temperature (K)	3000-5000K
Diameter of Lamp head(cm)	62
Special Color Rendering Index(R9)	98
Special Color Rendering Index(R13/R15)	99
Diameter of Light Spot (mm)	120-350
Illumination Depth (mm)	1500
Heat to Light Ratio (mW/m²·lux)	＜3.6
Lamp Head Power(VA)	100
LED Service Life(h)	60,000
Global Voltages	100-240V 50/60Hz
