    LEDD500 Ceiling-Mounted LED Single Dome Operating Light with Articulated Arm

    Short Description:

    LED500 LED operating light is available in three ways, ceiling mounted, mobile and wall mounted.

    LEDD500 refers to ceiling mounting LED operating light.


    Product Detail

    Product Tags

    Introduction

    LED500 LED operating light is available in three ways, ceiling mounted, mobile and wall mounted.

    LEDD500 refers to ceiling mounting LED operating light.

    New aluminum alloy housing contains 54 Osram bulbs in yellow and white. Each bulb is with independent lens. This LED operating light provides adjustable illuminance from 40,000 to 120,000lux, adjustable color temperature from 3500 to 5000K and CRI over 90 Ra. Both illuminance, color temperature and CRI change simultaneously.The operation panel is LCD Touch Screen. Disinfection handle is resistant to high-temperature and high-pressure. There are three options for spring arms, suitable for people with different budgets.

    Apply to

    ■ Heart/ Vascular/ Thoracic Surgery
    ■ Neurosurgery
    ■ Orthopaedics
    ■ Traumatology/ Emergency OR
    ■ Urology
    ■ ENT/ Ophthalmology
    ■ Endoscopy Angiography
    ■ Outpatient

    Feature

    1. Cold Light

    A new type of LED bulbs have no emission of infrared rays, which eliminates the heat under the lamp and prevent the temperature increase of the surgeon head and the wound area.

    2. Flicker-free Light

    LED is pure DC power supply, no flicker during the adjustment process, reducing eye fatigue.

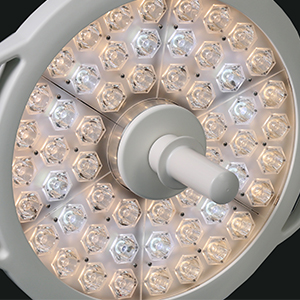

    3. Six Modules of OSRAM Bulbs with Two Colors

    The LED operating light bulbs are evenly distributed in yellow and white colors. During the adjustment process, the color temperature changes significantly. Cold light and warm light are suitable for different surgical needs.

    LED-Cold-Operating-Light

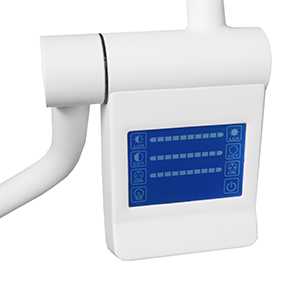

    4. User-friendly LCD Touchscreen Control Panel

    The color temperature, lighting intensity and color rendering index of the LED operating light can be changed synchronously through the LCD control panel.

    5. Endo Mode

    A special endoscope lighting can be used for minimally invasive surgical procedures.

    Operating-Light-with-LCD-Control-Panel

    6. Meet the Disinfection Requirements

    Sleek and enclosed design, no screws exposed outside,this LED operating light can meet the requirements of the disinfection.

    7. Light-Weight Suspension Arm

    Suspension arm with light-weight structure and flexible design is easy for angling and

    8. Upgrade Needs

    Operating-Light-with-Wall-Control
    LED-Operating-Light-With-Battery
    Operating-Light-with-Remote-Control

    Parameters:

    Name

    LEDD500 LED Operating Light

    Illumination Intensity (lux)

    40,000-120,000

    Color Temperature (K)

    3500-5000K

    Color Rendering Index(Ra)

    85-95

    Heat to Light Ratio (mW/m²·lux)

    <3.6

    Illumination Depth (mm)

    >1400

    Diameter of Light Spot (mm)

    120-300

    LED Quantities(pc)

    54

    LED Service Life(h)

    >50,000
