LEDD500700C+M refers to double dome LED operating room light.
Built-in camera system and external hanging monitor can be used for training purpose. It enables monitoring and recording operations.
■ abdominal/ general surgery
■ gynaecology
■ heart/ vascular/ thoracic surgery
■ neurosurgery
■ orthopaedics
■ traumatology / emergency OR
■ urology / TURP
■ ent/ Ophthalmology
■ endoscopy Angiography

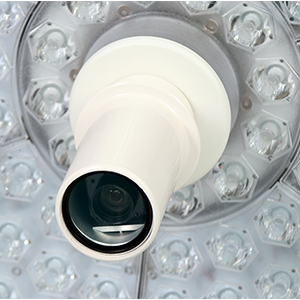

1. Camera System
Built-in camera, no need to hang it with another set of arms.
2. This operating room light captures and delivers images in fast speed and high quality. Due to 10X optical zoom, the images can be viewed from every aspect.
3. This operating room light can also record the operation surgery. It can be used for training and study purposes.
Monitor System
1. By broadcasting the operation, LEDD500700C+M operating room light can allow the clinic staff follow your progress without breaking the sterile field.
2. Operating room light with built-in camera and monitor provides another top view of the surgical head so that your surgical team can share surgical procedures worldwide.
Parameters:
Camera |
|
Resolution |
210 megapixel 1920(H)X 1080(V) |
Communication mode |
RS232 |
Communication protocols |
HITACHI / SONY VISCA |
Connector |
LVCMOS-36pFPC(YCbCr 4:2:2)compatibility 110/LVDS 30P |
Sensor type |
1/2.9" CMOS/ 1/3" CMOS |
Scan mode |
Progressive Scan |
Day And Night System |
Color/black and white/automatic |
Minimum illumination |
color:0.1Lux black and white:0.01Lux |
Synchronization mode |
inter-sync |
Video output |
digital signal |
SNR |
≥50dB(AGC OFF) |
Lens |
|
IRCUT |
IRCUT double filter automatic switching |
Optical lenses |
10X f=5mm~50mm |
field angle |
H:51.8°(W)~5.86°(T) V:39.1°(W)~4.4°(T) |
Function |
|
exposure mode |
A/M |
white balance |
Automatic |
Focus Mode |
A/M |
gain control |
A/M |
Picture Effect |
Automatic/color/black and white/negative |
mirroring function |
Support (horizontal mirror + vertical mirror) |
image rollovers |
Support |
Wide Dynamic |
D-WDR |
DNR |
2D-DNR |
electronic shutter |
1/30s~1/10,000s |
contrast ratio |
Adjustable |
saturation |
Adjustable |
Anti-fog function |
Support |
Marginal |
Support |
Generic specification |
|
Dimensions |
38.6(W)* 41(H)* 64.6(L)mm |
Work Temperature/humidity |
﹣10℃~50℃,10%RH~60%RH |
Storage Temp/humidity |
﹣20℃~60℃,10%RH~80%RH |
power supply |
DC 12V±10% |
power consumption |
3.5W MAX |
Net weight |
110g |
Monitor
Main Parameter |
|
Screen size |
21.5' |
Backlight Mode |
LED |
Display Area |
475.2mm(W)×267.3mm(H) |
Aspect Ratio |
16: 9 |
Max Resolution |
1920×1080 |
Display Color |
16.7M |
Pixel Pitch |
0.2475(H)×0.2475(V) |
Luminance |
300cd/㎡ |
Image Contrast |
1500: 1 |
Viewing Angle |
850/850/750/650 |
Response Time |
8MS |
Field Frequency |
50Hz, 60Hz, 70Hz |
Input and output |
|
SDI IN |
1 |
SDI OUT |
1 |
AV IN |
22(2×BNC) |
AV OUT |
1 |
S-VEDIO |
1 |
VGA Input |
1 |
HDMI Input |
1 |
YPbPr/YCbCr Input |
3(3×BNC) |
RS232 Input(Optional) |
1 |
Audio input |
1 |
Audio output |
1 |
Color system |
PAL / NTSC / SECAM |
OSD |
|
Language |
Chinese/English/French/German/Italian/Spanish/ |
Power supply |
|
Power |
DC 12V, 50/60Hz |
Pmax |
35W-55W |
Standby Power |
5W |
