LEDB620 Wall mount LED Surgical Lighting for hospital

Short Description:

LED620 surgical lightning is available in three ways, ceiling mounted, mobile and wall mounted.

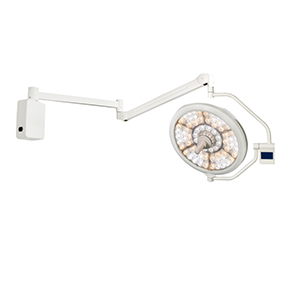

LEDB620 refers to wall mount surgical lightning.

7 lamp modules, a total of 72 bulbs, two colors of yellow and white, high-quality Osram bulbs, color temperature 3500-5000K adjustable, CRI higher than 90, illuminance can reach 150,000 Lux

Send email to us

Product Detail

Product Tags

Feature

1. Designed for Low Ceiling Room

Some operating rooms have low floor height or small area, which cannot meet the space requirement for ceiling operating room. You can choose this wall type surgical lightning.

2. Independant Spring Arm
The structure of the wall-type surgical lightning is strictly in accordance with the ceiling surgical lamp, with independent spring and rotating arm, both of which are structurally designed.
We provide two types of spring arms for customers to choose. One is the original imported ondal spring arm, and the other is the spring arm developed by us after upgrading and improving the ondal spring arm.
Different prices meet the needs of hospitals with different budgets.

3. User-friendly LCD Touchscreen Control Panel

The color temperature, lighting intensity and color rendering index of the surgical lightning can be changed synchronously through the LCD control panel.

4. Endo Mode

A special endoscope lighting can be used for minimally invasive surgical procedures.

5. Self-developed Lenses

Different from other manufacturers who buying simple lenses, we invest a lot to develop a unique lenses with better condensing performance. Each LED bulbs with its own lens, create its own light field. The overlapping of different light beam makes the light spot more uniform and significantly reduces the shadow rate.

6. High Display LED Bulbs

The high display bulb increases the sharp comparison between the blood and other tissues and organs of the human body, making the doctor's vision clearer.

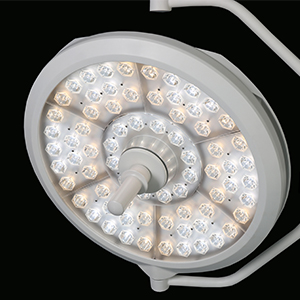

Surgical-Lighting-with-Aluminum-alloy-Arm

Parameters:

Description	LEDB620 Wall Surgical Lightning
Illumination Intensity (lux)	60,000-150,000
Color Temperature (K)	3500-5000K
Color Rendering Index(Ra)	85-95
Heat to Light Ratio (mW/m²·lux)	<3.6
Illumination Depth (mm)	>1400
Diameter of Light Spot (mm)	120-260
LED Quantities(pc)	72
LED Service Life(h)	>50,000
