    DD500 Ceiling Halogen Single Mount Surgical Light with Battery Back-up System

    Short Description:

    D500 Halogen surgical light is available in three ways, ceiling mounted, mobile and wall mounted. DD500 refers to single mount halogen surgical light.


    Product Detail

    Product Tags

    Introduction

    D500 Halogen surgical light is available in three ways, ceiling mounted, mobile and wall mounted.
    DD500 refers to single mount halogen surgical light.

    This halogen surgical lamp contains 2400 mirrors. It can providing up to 13,000 illuminance, and high CRI over 96 and over 4000K color temperature. Manual adjustable focus, 12-30cm, which can meet the needs of spinal surgery with small incision to large-scale burn surgery.

    Apply to

    Day operating room, laparoscopic operating room, small operating room.
    Clinical surgery, including general minor surgery, plastic surgery, laparoscopic surgery.

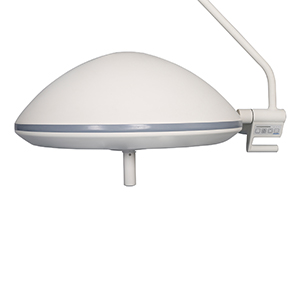

    Feature

    1. Meet Laminar Flow Purification Standard

    Fully enclosed streamlined shape, which is not easy to accumulate dust, in line with modern operating room laminar flow purification and disinfection requirements.

    Halogen-Shadowless-Surgical-Light

    2. Quality Reflectors
    The reflector is made of non-ferrous metal materials at one time and has a deep anti-oxidation treatment (non-coated) to ensure that it will not oxidize and fall off for a long time.

    3. Continuous and Stable illumination
    The multi-mirror reflection system minimizes the loss of light intensity and produces an illumination depth of more than 1400mm, which can obtain continuous and stable illumination from the initial incision to the deepest surgical cavity.

    Ceiling-Mounted-Single-Mount-Surgical-Light

    4. Cold Light
    South Korea imported medical heat insulation glass, so that the temperature rise is not higher than 10 degrees, and will not cause the risk of water evaporation in the injured area.

    Single-Surgical-Light

    5. Powerful Switch Box
    Ten-level brightness selection.
    Brightness memory function.
    The main light failure indicator, reminds to replace the bulb in time after the operation.
    When the main lamp fails, the auxiliary lamp will be automatically lit within 0.3 seconds, and the light intensity and spot will not be affected.

    Single-Mount-Surgical-Light

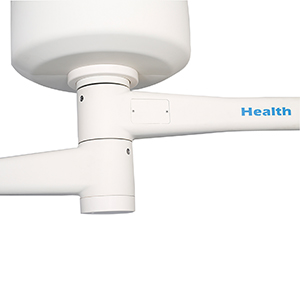

    6. Light-Weight Suspension Arm
    Suspension arm with light-weight structure and flexible design is easy for angling and positioning.

    Surgical-Light-with-Aluminum-alloy-Arm

    Parameters:

    Description

    DD500 Ceiling Halogen  Surgical Light

    Diameter

    >= 50cm

    Illuminance

    40,000- 130,000 lux

    Color Temperature (K)

    4200±500

    Color Rendering Index(Ra)

    92-96

    Illumination Depth (mm)

    >1400

    Diameter of Light Spot (mm)

    120-300

    Mirrors(pc)

    2400

    Service Life(h)

    >1,000
