China TDG-2 China Hot Selling Electric Ophthalmology Operating Table with CE certificates manufacturers and suppliers

TDG-2 China Hot Selling Electric Ophthalmology Operating Table with CE certificates

Short Description:

TDG-2 electric ophthalmic operating table uses a foot switch to adjust the leg, back and elevation of table.

It is made of stainless steel, which is easy to clean and has high mechanical strength.

Widen the ophthalmology table surface, concave headboard, high-quality memory mattress, improve patient comfort.

The optional doctor seat can adjust the armrest back panel and seat height.

Send email to us

Product Detail

Product Tags

Feature

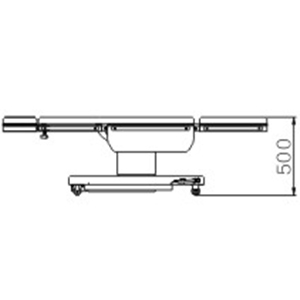

1. Ultra-Low Position

The minimum height of ophthalmology operating table can be adjusted to 500mm. The well-known electromagnetic drive system is stable, reliable and noise-free during operation. It is the best choice for ophthalmology and ENT surgery.

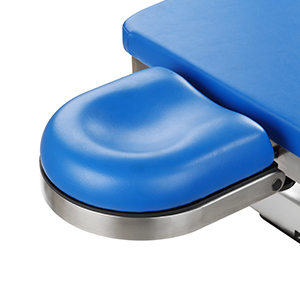

2. Removable Head Plate

Removable head plate is easily to control by mechanical gear.

The concave design in the middle of the headboard cushion meets the ergonomic requirements.

1. Ultra-Low Position

Ophthalmology-Operating-Table -Manufacturers

2. Removable Head Plate

3. Wide Surface

The surface width can reach 550mm, allowing the patient to lie on it more comfortably

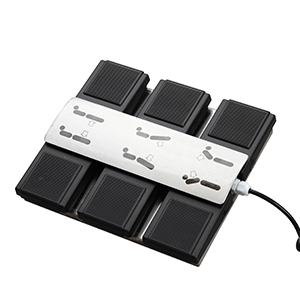

4. Flexible Foot Switch

The angle of the back plate and leg plate can be adjusted through the foot switch, which is convenient for the doctor to adjust the patient's position to the most ideal position during the ophthalmology operation.

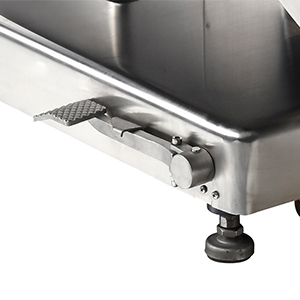

5. Petal Brake

Mechanical pedal brakes are faster, convenient, safe and reliable.

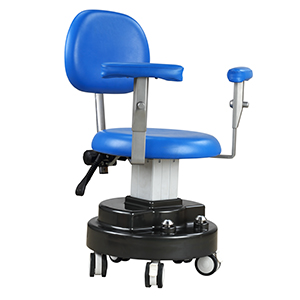

6. Optional Doctor Chair

The doctor chair can adjust the armrests, backrests and seat height.

4. Flexible Foot Switch

5. Petal Brake

Ophthalmic-Operating-Table -Specifications

6. Optional Doctor Chair

Parameters

Model Item	TDG-2 Electric Ophthalmic Operating Table
Length and Width	2080mm * 550mm
Elevation( Up and Down)	700mm / 500mm
Head Plate (Up and Down)	45°/ 90°
Back Plate (Up and Down)	45°/ 20°
Leg Plate (Up and Down)	45°/ 20°
Horizontal Sliding	300mm
Electro-motor system	Jiecang
Voltage	220V/110V
Frequency	50Hz / 60Hz
Power Compacity	1.0 KW
Battery	Yes
Mattress	Memory Mattress
Main Material	304 Stainless Steel
Maximum Load Capacity	200 KG
Warranty	1 Year
